H.E. 103% | NOX ≤30 mg/m3 | Fuel (1 T/h) 27 Nm3/h LPG |

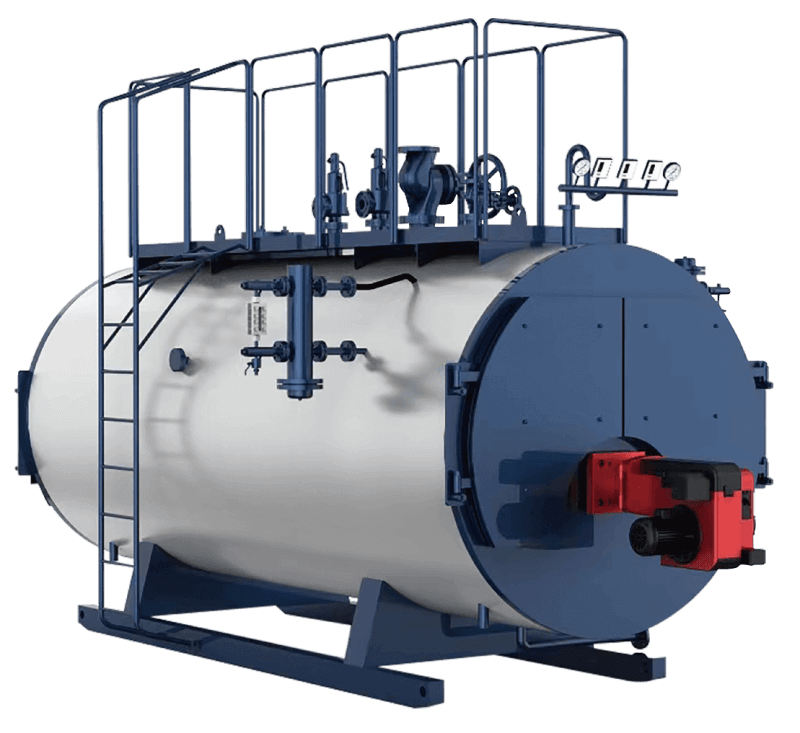

Technical Features
Possess all the high thermal efficiency, high safety, low environmental emissions and excellent technical performance of energy-saving gas fired boilers.
The dual-fuel system is particularly well-suited for usage in regions with limited access to natural gas, as it enables the production of high-quality steam at a reasonable cost in these places.

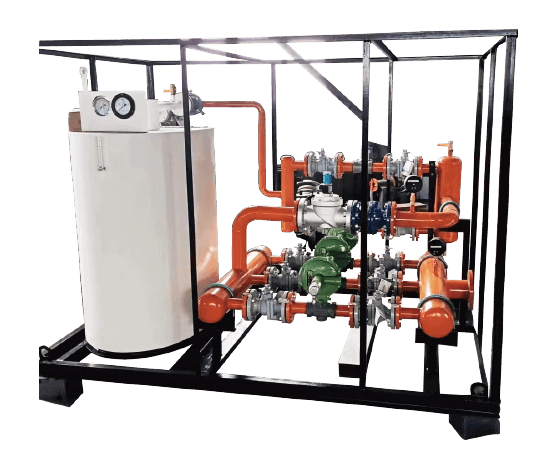

Fuel waste and safety risks are eliminated completely by the LPG gasifying equipment, enabling the safe and effective use of LPG fuel.
The fuel can be switched freely during normal running of the system, which significantly simplifies operation.
Technical Parameters
Model | WNS1 | WNS2 | WNS4 | WNS6 | WNS8 | WNS10 | WNS12 | WNS15 | WNS20 | ||
Rated Evaporation | T/h | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 15 | 20 | |
Feed-Water Temperature | °C | 20 | 20 | 20 | 20 | 104 | 104 | 104 | 104 | 104 | |
Rated Steam Pressure | MPa | 1.0 / 1.25 | |||||||||
Rated Steam Temperature | °C | 184 / 193.4 | |||||||||
Applicable Fuel | / | Natural Gas/Liquefied Petroleum Gas/Light Diesel/Biogas | |||||||||
Fuel Consumption | LPG | Nm3/h | 27.5 | 51.6 | 101.2 | 153 | 180 | 221.8 | 280 | 331.6 | 440.2 |
Light Diesel | kg/h | 65.6 | 130.2 | 259.5 | 390 | 507 | 549 | 787 | 830.6 | 1094 | |
Thermal Efficiency | % | 103 % | |||||||||
Power Consumption | Kw | 5.5 | 9.5 | 14.7 | 22.5 | 37.5 | 44 | 65 | 73.5 | 97 | |
Voltage | V | 220、380 / 50 Hz | |||||||||
Weight | T | 8 | 9.1 | 12.8 | 17.7 | 23.3 | 26.6 | 28.9 | 31.1 | 52.5 | |
Water Capacity | m3 | 3.7 | 6 | 8.6 | 11.2 | 15.3 | 21.0 | 27.5 | 28.7 | 41.4 | |
Emission of NOX | / | ≤150mg/Nm3 / ≤80mg/Nm3 / ≤30mg/Nm3 | |||||||||
Installation Dimension Diagram
Model | WNS1 | WNS2 | WNS4 | WNS6 | WNS8 | WNS10 | WNS12 | WNS15 | WNS20 | |
Inlet of Water | DN | 25 | 32 | 40 | 40 | 50 | 50 | 50 | 65 | 65 |
Main Outlet of Steam | DN | 50 | 80 | 100 | 125 | 150 | 150 | 200 | 200 | 200 |
Auxiliary Outlet of Steam | DN | 25 | 40 | 40 | 40 | 40 | 40 | 40 | 50 | 50 |
Outlet of Surface Drain | DN | 25 | 25 | 25 | 25 | 40 | 40 | 40 | 40 | 40 |
Base of Safety Valve | DN | 2x40 | 2x40 | 2x50 | 2x65 | 2x80 | 2x80 | 2x80 | 2x100 | 2x100 |
Drain Outlet | DN | 50 | 50 | 50 | 50 | 50 | 50 | 2x50 | 2x50 | 2x50 |
Outlet of Condensate | -- | G2"x2 | ||||||||
Diameter of Chimney | High*Width | 214x350 | 319x350 | 364x500 | 514x500 | 704x740 | 789x700 | 789x700 | 809x880 | 1105x990 |
Overall Size of Product | L | 3680 | 4457 | 5211 | 6125 | 6647 | 7153 | 7528 | 7740 | 8900 |
L1 | 2810 | 3300 | 4200 | 5000 | 5450 | 5860 | 6450 | 6500 | 5800 | |
L2 | Determine Based on the Size of the Selected Burner | |||||||||
W | 2000 | 2074 | 2330 | 2530 | 2696 | 2860 | 3000 | 3300 | 3620 | |
W1 | 1640 | 1500 | 1800 | 2000 | 2200 | 2400 | 2500 | 2600 | 3200 | |
W2 | 3266 | 3367 | 3596 | 3796 | 3990 | 4153 | 4266 | 4271 | 4493 | |
H | 2174 | 2305 | 2597 | 2826 | 3030 | 3230 | 3490 | 3660 | 3970 | |
H1 | 3310 | 3421 | 3718 | 3945 | 4124 | 4325 | 4642 | 5200 | 5450 | |
